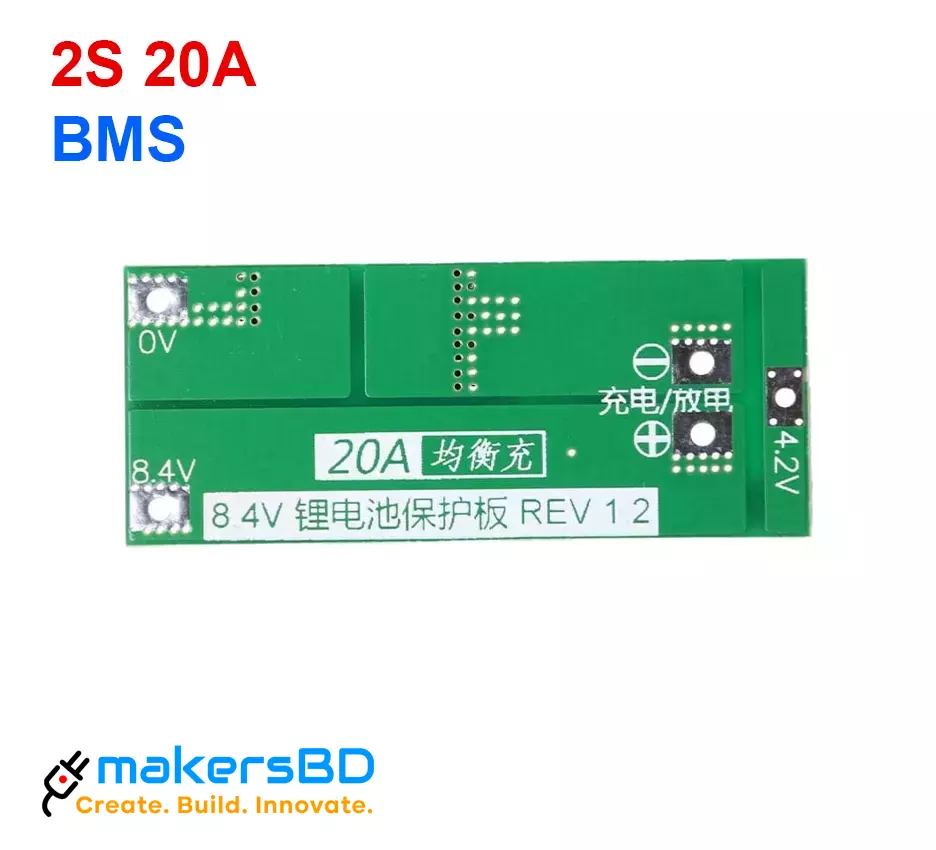

Name: 2S 20A 7.4V 8.4V 18650 Lithium Battery Protection Board BMS (Balanced)
Brand: MakersBD
Price: 99 BDT
Availability: InStock

42% Discount

2S 20A 7.4V 8.4V 18650 Lithium Battery Protection Board BMS (Balanced)

~~৳ 170~~ ৳ 99

SKU : MK0482

👉2S Balanced BMS for 2× 18650 Li-ion batteries

👉Overcharge & Over-discharge Protection

👉Short-Circuit Protection for improved battery safety

👉Up to 13A Operating Current & 20A Limiting Current

👉Compact 44.77 × 18.85 × 3.5mm Design

Brand : MakersBD

- +

+8801611393333

Delivery Information

Home delivery available all over Bangladesh

Standard Delivery

• Inside Dhaka 24 Hours guaranteed delivery.
• Outside Dhaka 48 hours guaranteed delivery after order confirmation

Regular Delivery Charge

• Inside Dhaka 60Tk
• Outsite Dhaka 120Tk

Cash on Delivery Available

Advance Payment Means Faster Delivery

Scan with mobile

Download app to enjoy exclusive offers and discounts!

Sold by

MakersBD Gadget & Electronics

Chat Now

Specification
Description
Reviews (0)

Specification

Product Type: 2S Balanced BMS Protection Board
Battery Type: 18650 Li-ion
Balanced Version
Battery Configuration: 2S / 2 Cells in Series
Nominal Battery Voltage: 7.4V
Full Charge Voltage: 8.4V
Charging Voltage: 8.4V
Over-Charge Voltage: 4.20–4.25V ± 0.05V
Over-Discharge Voltage: 2.5–3.0V ± 0.05V
Maximum Operating Current: 13A
Maximum Limiting Current: 20A
Quiescent Current: <10µA
Internal Resistance: <300Ω
Protection: Balance Mode, Overcharge, Over-discharge, Short Circuit
Operating Temperature: -40°C to +50°C
Number of Pins: 5
Pin Configuration: B+, B-, BM, P+, P-
Length: 44.77 mm
Width: 18.85 mm
Height: 3.5 mm
Weight: Approx. 4g

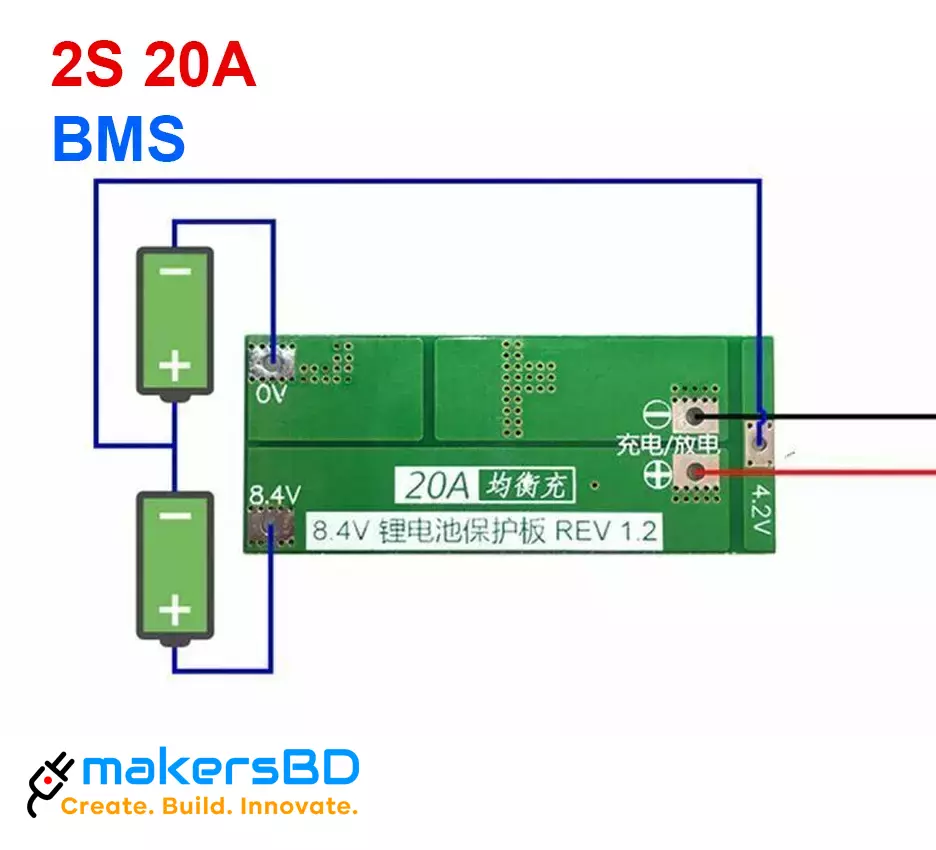

Battery Connection: 2 × 18650 cells in series
BMS Type: Balanced
Charger Required: External 8.4V Li-ion charger/charging source

Description

2S 20A Balanced BMS Battery Management Protection Board is designed for two 18650 Li-ion batteries connected in series. It provides essential battery protection against overcharging, over-discharging, and short circuits while also helping maintain a balanced voltage between the two cells during charging.

The module supports a battery voltage range of 7.4V to 8.4V and features dedicated B+, B-, BM, P+ and P- terminals for convenient connection. Its compact size makes it suitable for DIY battery packs, portable electronics, LED projects, DIY power banks and other battery-powered applications.

This BMS supports up to 13A maximum operating current and has a 20A maximum limiting current. Please note that this is a BMS protection and balancing board, not a standalone battery charger. An appropriate 8.4V charging source should be used.
