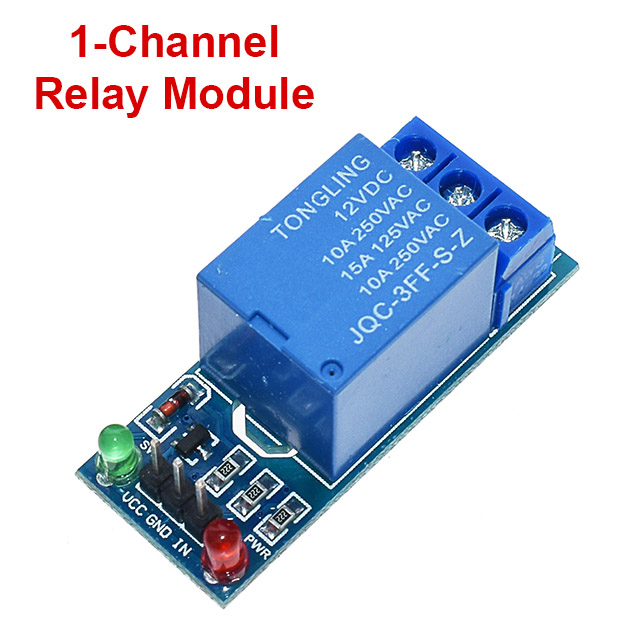

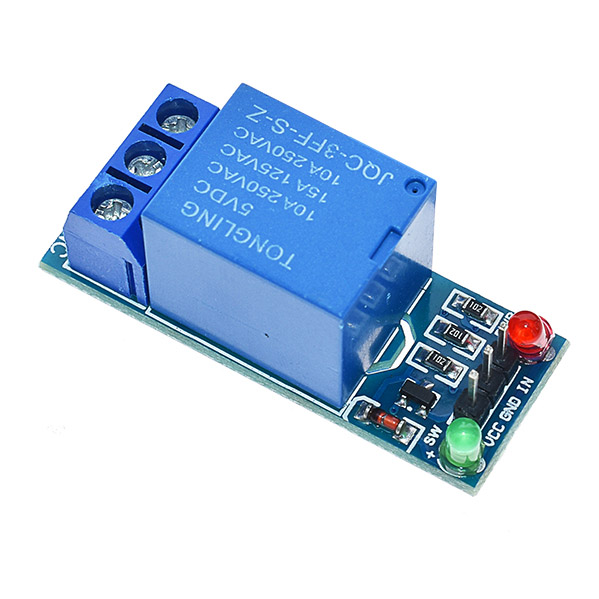

5V Low Level Trigger 1 Channel Relay Module For PIC AVR DSP ARM MCU Arduino

~~৳180~~ ৳130

0.00/5 See Reviews

SKU : MK0115

Brand : MakersBD

- +

Stock : 10

Contact WhatsApp

Specification
Description
Reviews (0)

Specification

100% brand new and high quality
This is a 5V 1-Channel Relay interface board
Be able to control various appliances, and other equipments with large current
It can be controlled directly by Micro-controller (FOR Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
5V 1-Channel Relay interface board, and each one needs 50-60mA Driver Current
Equiped with high-current relay, AC250V 10A ; DC30V 10A
Indication LED's for Relay output status

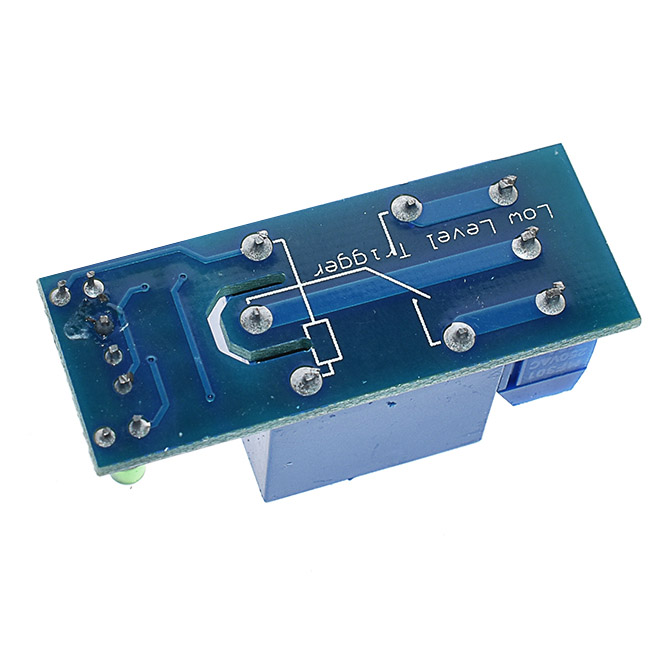

Input IN1 signal low level effectively
VCC, GND power input end, can supply power alone
Support all single-chip control, industrial area, PLC control, household intelligent control

Description

The module complies with international safety standards, control area load area isolation groove;2, Genuine relay Songle;
With the power and relay action instructions, pull bright disconnect does not shine;
When a signal in the signal input terminal, the common terminal and the normally start conduction;
Microcontroller development board can be used as a module that can be used as a home appliance control;
The control of the DC or AC signal, can control 220V AC load;
There is a normally open and a normally closed contact;
Blue KF301 terminals to the line of control is more convenient.
Description of the high and low trigger, friends do not understand Take a look at:
High level trigger is a trigger voltage between the signal input and ground can be understood as a way of the signal input terminal and VCC cathode short trigger;Low trigger means is the voltage between the signal input terminal and the ground for the OV trigger mode can be understood as a way of the signal input terminal and GND negative short trigger
