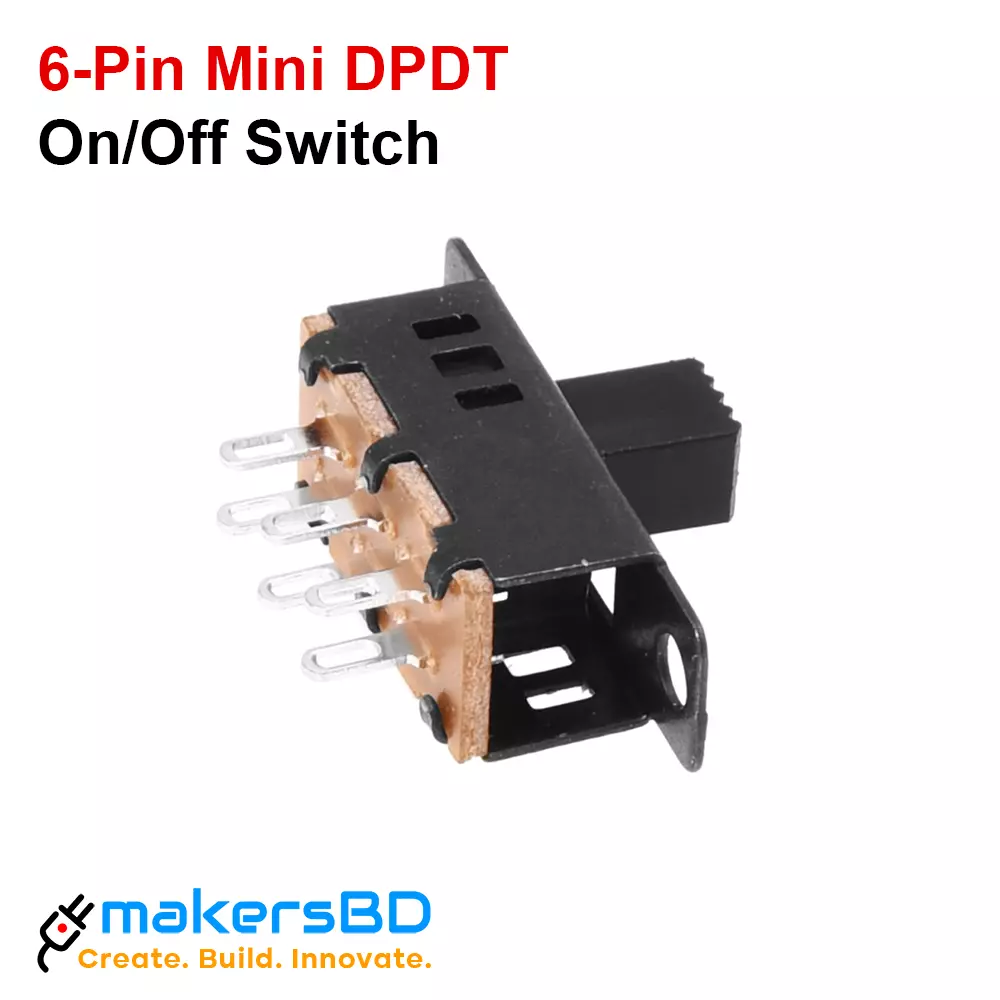

Name: 6-Pin Mini DPDT Slide On Off Switch 3 Steps
Brand: MakersBD
Price: 15 BDT
Availability: InStock

17% Discount

6-Pin Mini DPDT Slide On Off Switch 3 Steps

~~৳ 18~~ ৳ 15

SKU : MK0457

Type: Slide Switch
Operation Mode: On-On (DPDT)
Number of Pins: 6

Brand : MakersBD

- +

+8801611393333

Delivery Information

Home delivery available all over Bangladesh

Standard Delivery

• Inside Dhaka 24 Hours guaranteed delivery.
• Outside Dhaka 48 hours guaranteed delivery after order confirmation

Regular Delivery Charge

• Inside Dhaka 60Tk
• Outsite Dhaka 120Tk

Cash on Delivery Available

Advance Payment Means Faster Delivery

Scan with mobile

Download app to enjoy exclusive offers and discounts!

Sold by

MakersBD Gadget & Electronics

Chat Now

Specification
Description
Reviews (0)

Specification

Type: Slide Switch
Operation Mode: On-On (DPDT)
Number of Pins: 6
Rated Voltage: 5V to 250V AC/DC
Rated Current: 0.3A to 2A (varies by voltage)
Contact Configuration: Double Pole Double Throw (DPDT)
Material: Plastic housing with metal contacts
Switch Mechanism: Sliding actuator
Mounting Type: PCB or panel mount
Contact Resistance: ≤ 50mΩ
Insulation Resistance: ≥ 100MΩ
Dielectric Strength: 500V AC for 1 minute
Mechanical Life: Over 10,000 operations
Dimensions: Varies by model (typically around 10mm - 20mm length)
Operating Temperature: -20°C to +85°C

Description

The Mini DPDT On-On Slide Switch is a compact Double Pole Double Throw (DPDT) switch designed for electronic circuits requiring dual independent switching. With 6 pins, this switch can be used to control two separate circuits simultaneously, making it ideal for polarity reversing, signal switching, and multi-mode selection. Its small size allows easy integration into PCB designs, DIY projects, and small electrical devices. The durable plastic and metal construction ensures reliable performance over thousands of operations.
