Specification
Description
Reviews (0)

Specification

.Product Name: Water Level Sensor

.Operating voltage: DC3-5V

.Operating current: less than 20mA

.Sensor Type: Analogue

.Detection area: 40mm x 16mm

.Production process: FR4 double sided HASL

.Operating temperature: 10-30

.Humidity: 10% -90% non-condensing

.Dimensions: 62mm x 20mm x 8mm

Description

WATER LEVEL Sensor Depth Of Detection Water Sensor For Arduino Hi-gh Sensitivity Water Sensor Water Level Sensor Module Depth of Detection Liquid Surface Height Electronics Circuitry & Parts

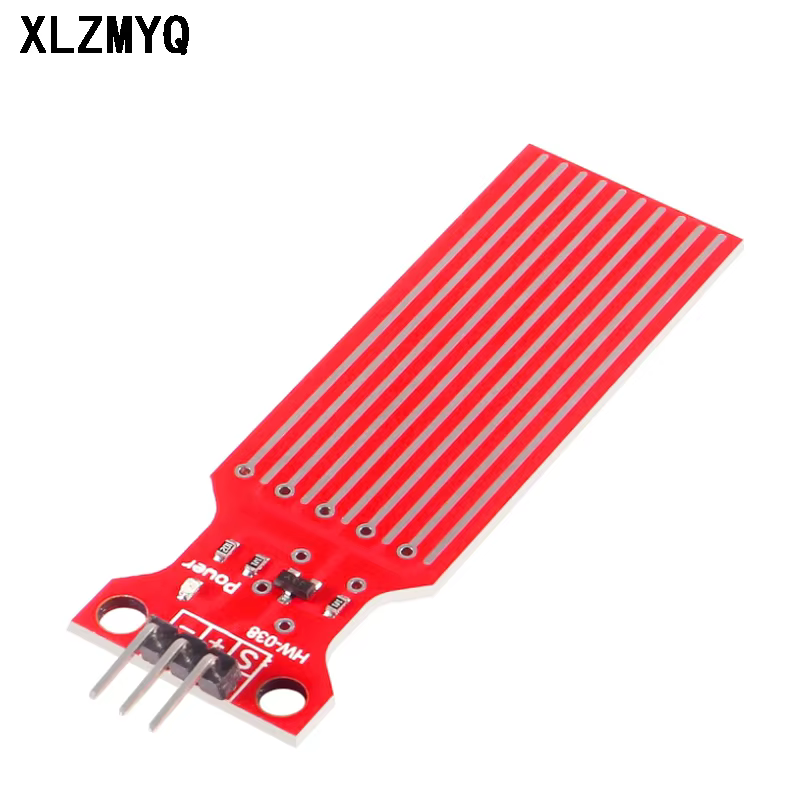

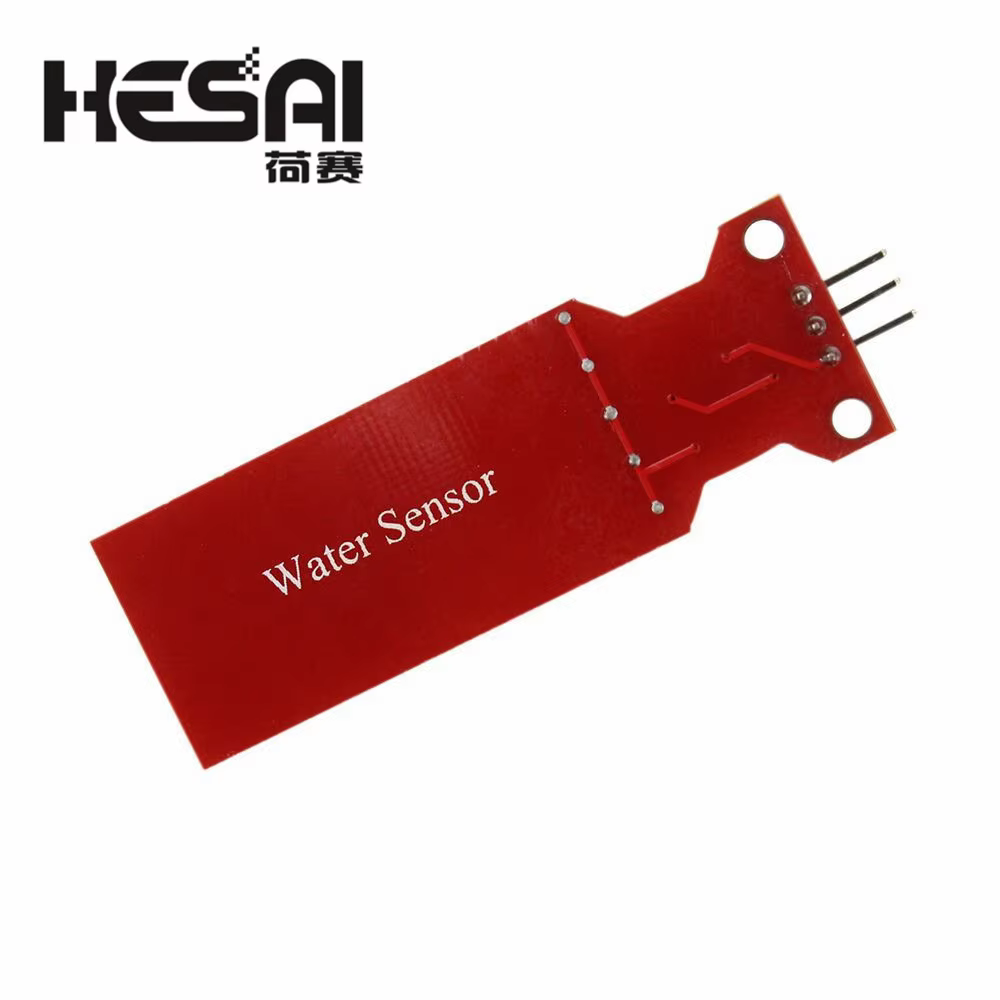

This is simple and small portable water level/water droplet identification, detection sensor water that have high cost performance. Complete water yield and analog conversion, the output value apply to your custom function. It is low power consumption and high sensitivity. It can make better performance with Arduino 328 controller and sensor relay shield.Water Sensor water level sensor is an easy-to-use, cost-effective high level/drop recognition sensor, which is obtained by having a series of parallel wires exposed traces measured droplets/water volume in order to determine the water level. Easy to complete water to analog signal conversion and output analog values can be directly read Arduino development board to achieve the level alarm effect.

Working:

Point Probe sensors are mostly Capacitive type or Resistive. The sensor will have dielectric constants. They measure changes in the value of capacitance when the sensor is dipped into the liquid. The change corresponds to Level variation. Two types of sensors are available, one with high dielectric constants and another with low dielectric constants. This sensor will work with the different range of solids, liquids and mixed materials. These sensors also available both in contact or non-contact type sensor. It is important to know whether the sensor works with all types of material or tank. The sensor requires calibration for the specific type of material as the dielectric constant varies and for tank design.

If the board has water or another fluid covering all the wire, then it will output a maximum analog value reading. Since analog values read by an Arduino range from 0 (lowest reading) to 1023 (highest reading), a board completely submerged with a liquid will have a reading of 1023 by an Arduino. If the board is halfway covered, a reading of about 512 read by the Arduino. If the board is 1/4 covered by a liquid, then the Arduino will read about 256. And if no liquid is on it at all, then a near 0 reading obtained. This output analog values directly read via ADC and also connected directly to Arduino’s analog input pins
