Product Overview

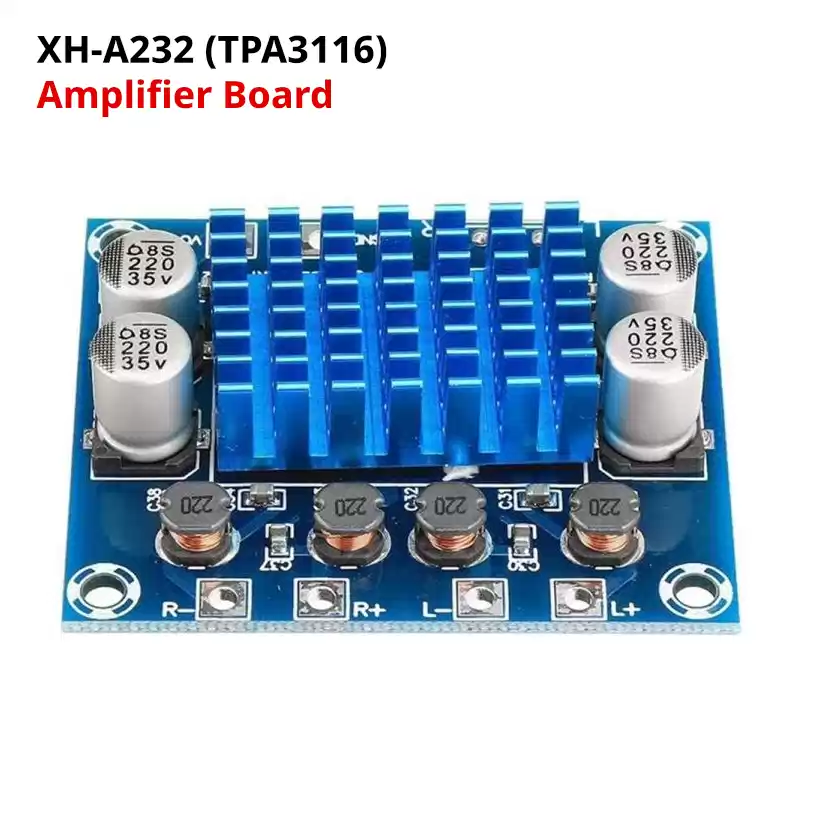

The TPA3110 XH-A232 30W+30W 2.0 Channel Digital Stereo Audio Power Amplifier Board is an exceptional audio solution designed for electronics enthusiasts, hobbyists, and DIY sound system builders in Bangladesh. Engineered with advanced digital amplification technology, this compact board delivers robust audio performance without requiring a bulky heatsink setup for normal operating conditions.

Built to handle a wide DC voltage range from 8V to 26V, it integrates seamlessly into various audio setups, computer speakers, and custom portable sound projects. At MakersBD, we source top-grade electronic components to ensure you receive reliable, high-performing modules for all your creative engineering builds.

Key Features & Advantages

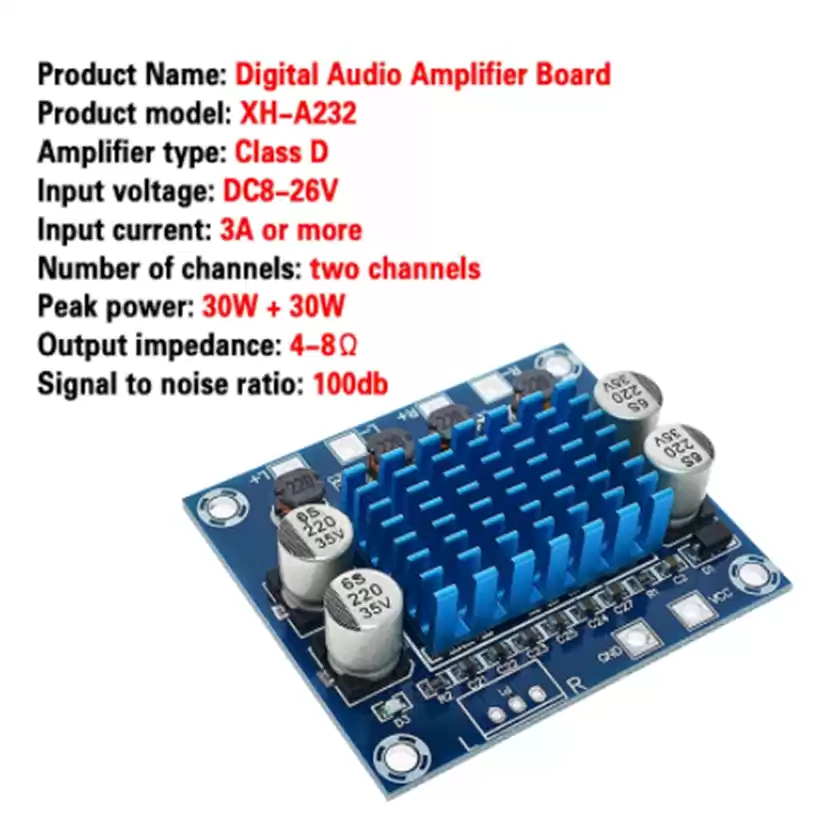

• High-Efficiency Power: Delivers robust 30W plus 30W stereo output channels for crisp and loud audio playback.
• Wide Voltage Compatibility: Supports a flexible DC power input ranging from 8V up to 26V for diverse power sources.
• Superior Audio Clarity: Features a high 100dB signal-to-noise ratio to minimize background noise and distortion.
• Compact Form Factor: Small physical dimensions allow effortless integration into tight project enclosures and speaker cabinets.
• Low Power Dissipation: Designed to maintain high thermal efficiency during extended listening sessions.

How to Use / Working Guide

Connect a compatible DC power supply ranging from 8V to 26V (with a current rating of at least 3A) to the VCC and GND terminals. Attach your audio source input to the audio input channels, and connect 4-ohm to 8-ohm speakers to the corresponding left and right output terminals. Ensure correct polarity before powering on the circuit to prevent damage.

Applications & Ideal Use Cases

• Custom DIY desktop computer speaker systems
• Portable mini Bluetooth and auxiliary sound boxes
• Electronics maker projects and science fair audio setups
• Upgrading old or damaged speaker internal amplifiers

Frequently Asked Questions (FAQ)

Q: What is the recommended power supply current?
A: It is recommended to use a DC power supply with a current rating of 3A or higher for optimal performance.

Q: Can I use 4-ohm speakers with this board?
A: Yes, this amplifier board fully supports speaker impedances between 4 ohms and 8 ohms.

Package Includes

• 1 x TPA3110 XH-A232 30W+30W Digital Audio Amplifier Board
