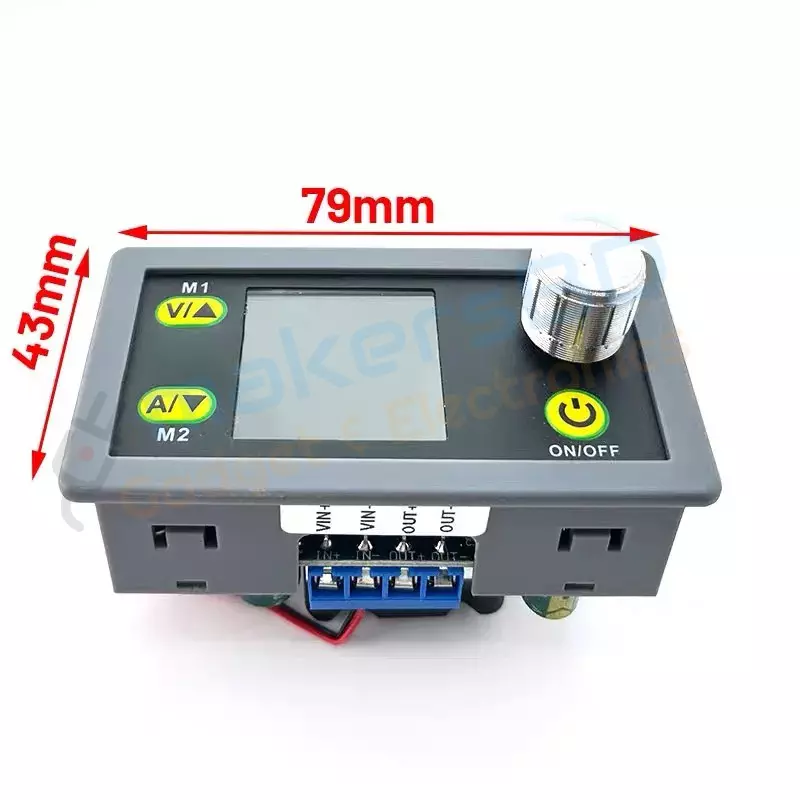

Digital Display Buck Boost Converter WZ3605E CC CV 36V 5A Power Module Adjustable Power Supply
৳ 2450
৳ 2160
SKU : MK0424
Home delivery available all over Bangladesh
Standard Delivery
• Inside Dhaka 24 Hours guaranteed delivery.• Outside Dhaka 48 hours guaranteed delivery after order confirmation
Regular Delivery Charge
• Inside Dhaka 60Tk• Outsite Dhaka 120Tk
Cash on Delivery Available
Advance Payment Means Faster Delivery
Download app to enjoy exclusive offers and discounts!
Sold by
MakersBD Gadget & Electronics
Specification
বাংলাদেশে একমাত্র আমরাই দিচ্ছি আসল কোয়ালিটির WZ3605E মডিউল। লিথিয়াম আয়ন/ফসফেট ব্যাটারী নিরাপদ এবং সঠিক চার্জে অত্যন্ত কার্যকর। যেকোন প্রজেক্টে নিখুঁত ভোল্টেজ এবং কারেন্ট প্রয়োগে মডিউলটি অত্যন্ত কার্যকর।
- Input Voltage Range: 6.00V – 36.00V
- Output Voltage Range: 0.60V – 36.00V
- Output Current Range: 0.000A – 5.000A
- Output Power Range: 0 – 80W
- Voltage Resolution: 0.01V
- Current Resolution: 0.001A
- Capacity Measurement Range: 0 – 9999.99Ah
- Energy Measurement Range: 0 – 9999.99Wh
Safety & Protection Parameters
- The device includes several programmable "Image Text" alerts and protection triggers to safeguard your equipment:
- OVP (Over Voltage Protection): Automatically shuts down if output exceeds the set voltage.
- OCP (Over Current Protection): Cuts power if current exceeds the defined limit.
- OPP (Over Power Protection): Prevents the module from exceeding its 80W capacity.
- OTP (Over Temperature Protection): Shuts off the output if internal temperatures reach unsafe levels.
- OHP (Over Time Protection): Allows for a set timer to automatically disable the output.
- OAH (Over AH Protection): Sets a specific capacity limit, ideal for preventing battery overcharging.

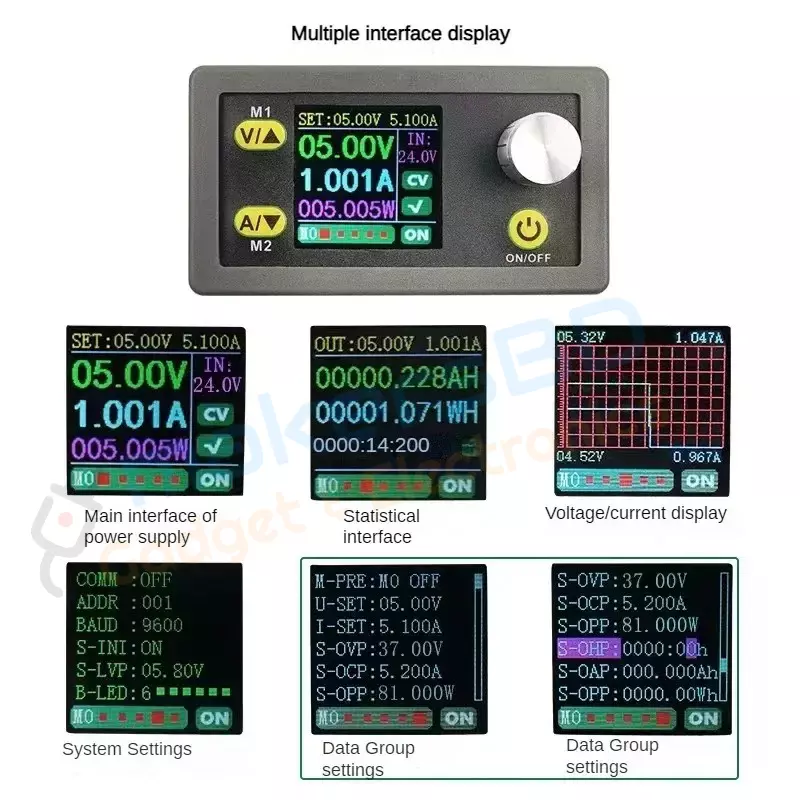

LCD Interface Elements
- When viewing the product images or operating the device, the following labels are displayed on the screen:
- V-SET: Programmed target output voltage.
- I-SET: Programmed maximum output current limit.
- U-IN: Real-time monitoring of the input voltage.
- U-OUT: Real-time monitoring of the current output voltage.
- I-OUT: Real-time monitoring of the output amperage.
- P-OUT: Real-time calculation of output wattage.
- Wh/Ah: Tracking of cumulative energy and capacity usage.
Description

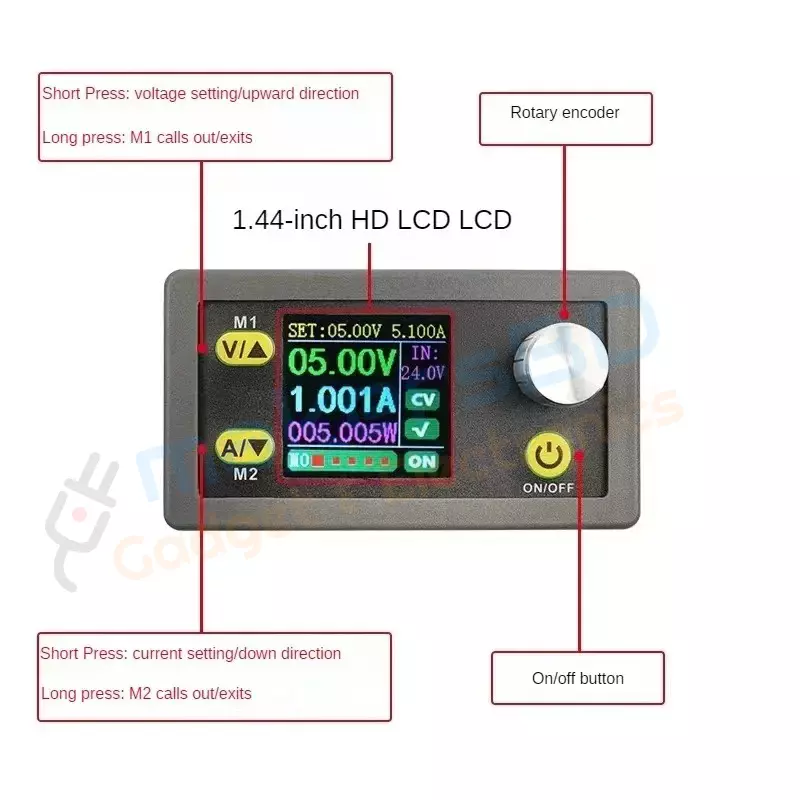

The WZ3605E is a versatile power module that can both step up (boost) and step down (buck) input voltage to provide a stable, regulated output. It features a professional 1.44-inch high-definition color LCD screen that displays real-time data across multiple interfaces, including voltage, current, power, and capacity. Its CNC (Computer Numerical Control) interface allows for fine-tuning of output parameters with high accuracy.
Key Features:
- Multi-Screen Display: Intuitive 1.44-inch color LCD showing input/output stats and system status.
- CC/CV Modes: Supports Constant Current (CC) and Constant Voltage (CV) modes, making it ideal for LED driving and battery charging.
- Data Storage: Includes 10 groups of memory storage for quick recall of frequently used settings.
- Safety Protections: Comprehensive built-in protection mechanisms to prevent damage to the module or connected loads.
