BW16 KIT RTL8720DN NodeMCU 2.4Ghz & 5Ghz Wifi Wireless WIFI Module
৳ 1190
৳ 1049
SKU : MK0332
Home delivery available all over Bangladesh
Standard Delivery
• Inside Dhaka 24 Hours guaranteed delivery.• Outside Dhaka 48 hours guaranteed delivery after order confirmation
Regular Delivery Charge
• Inside Dhaka 60Tk• Outsite Dhaka 120Tk
Cash on Delivery Available
Advance Payment Means Faster Delivery
Download app to enjoy exclusive offers and discounts!
Sold by
MakersBD Gadget & Electronics
Specification
- Supports 802.11a/b/g/n 1×1, 2.4GHz or 5GHz
- Support HT20/HT40 mode
- Supports low power beacon listening mode, low power receive mode, low power suspend mode
- Built-in AES/DES/SHA hardware engine
- Support for TrustZone-M, support for safe startup
- Support for SWD debug port access protection and disabling modes
- Support for BLE and BT5.0
- Bluetooth supports high power mode (7dBm, sharing the same PA as Wi-Fi)
- Wi-Fi and BT share the same antenna
- Support STA/AP/STA+AP working mode
- Simple Config (APP) support Android, IOS one-click network configuration
- Support for serial port local upgrade and remote firmware upgrade (FOTA)
Model | BW12 | BW14 | BW16 | TRL00 |
Antenna Type | PCB | PCB | PCB/IPEX | PCB |
Major Chipset | RTL8710BX | RTL8710BX | RTL8720DN | RTL8710AF |
SIZE | 24*16*3 | 50.5*29.2*3.3 | 24*16*3 | 24*16*0.8 |
Description

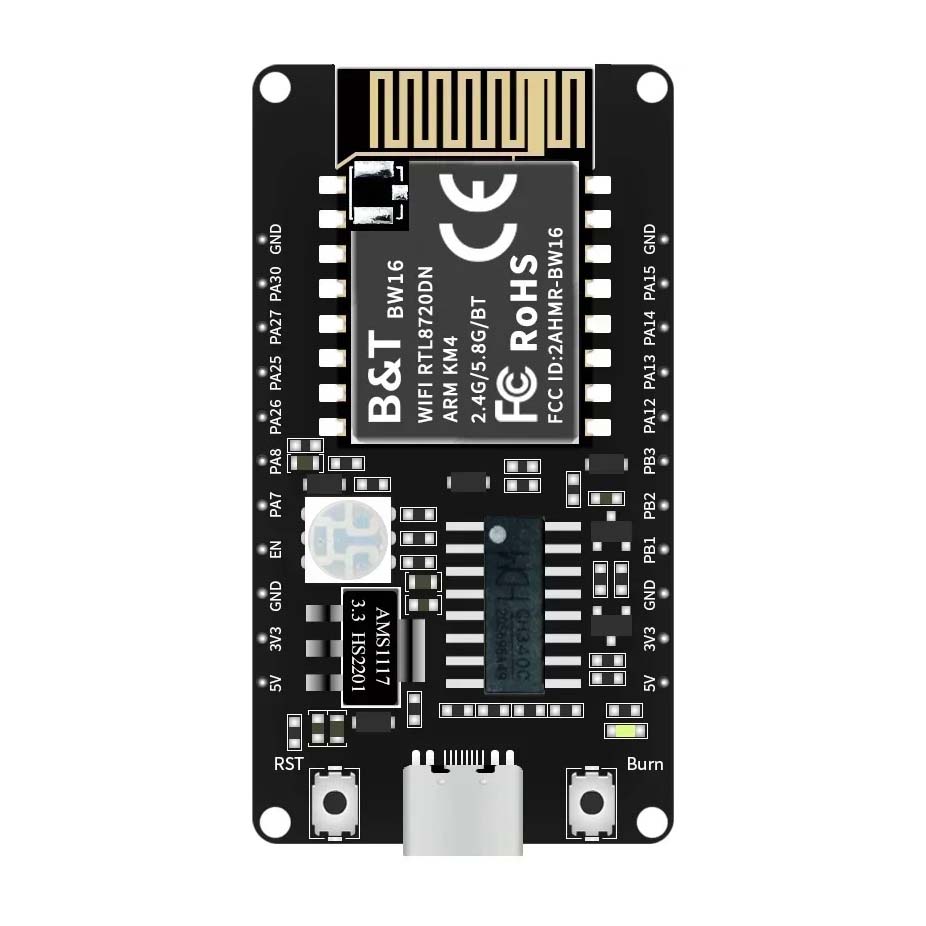

BW16 is a dual-band Wi-Fi+ Bluetooth SoC module developed based on RTL8720DN.BW16 supports dual-band (2.4GHz or 5GHz) WLAN and low-power Bluetooth 5.0;It integrates ARM V8 (Cortex-M4F compatible) high-performance MCU, ARM V8M (Cortex-M0 compatible) low-power MCU, WLAN (802.11a/b/g/n), MAC, Bluetooth baseband and RF baseband, and provides a set of configurable GPIO ports for control of different peripheral devices.BW16 also integrates internal storage, supports simple application development, and can realize full Wi-Fi and BT 5.0 protocol functions.
