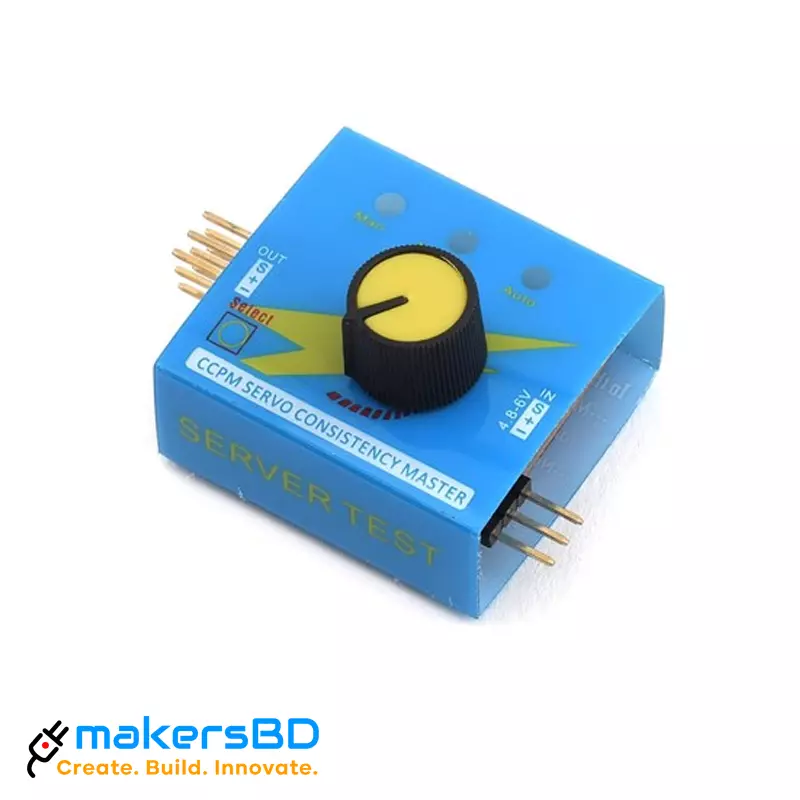

Servo Tester CCPM Consistency Master Checker Servo & ESC Gear Tester
৳ 300
৳ 180
SKU : MK0484
✅3 Testing Modes: Manual, Neutral & Automatic
✅3-Channel Testing: Test up to 3 servos or ESCs simultaneously
✅ESC Signal Generator: Test ESCs without a transmitter and receiver
✅CCPM Consistency Check: Compare servo response and movement
✅Compact & Lightweight: Only 8g with a small 35 × 30 × 15mm body
Home delivery available all over Bangladesh
Standard Delivery
• Inside Dhaka 24 Hours guaranteed delivery.• Outside Dhaka 48 hours guaranteed delivery after order confirmation
Regular Delivery Charge
• Inside Dhaka 60Tk• Outsite Dhaka 120Tk
Cash on Delivery Available
Advance Payment Means Faster Delivery
Download app to enjoy exclusive offers and discounts!
Sold by
MakersBD Gadget & Electronics
Specification
- Product Type: Servo Tester / ESC Tester / CCPM Consistency Checker
- Model / Reference: RBD-1518
- Operating Voltage: DC 4.8–6V
- Output Current: ≤15mA @ 5V
- Output Signal: 1.5ms ± 0.5ms
- Testing Modes: Manual, Neutral & Automatic
- Number of Channels: 3
- Servo Connection: Up to 3 Servos Simultaneously
- ESC Connection: Up to 3 ESCs Simultaneously
- Control: Rotary Knob & Mode Selection Button
- Indicators: LED Indicators
- Color: Blue
- Dimensions: 35 × 30 × 15mm
- Knob Diameter: 12mm
- Weight: 8g
- Application: RC Cars, RC Planes, Helicopters, Quadcopters, Robotics & DIY Projects
- Package Includes: 1 × Servo Tester Gear Test CCPM Consistency Master Checker
Description

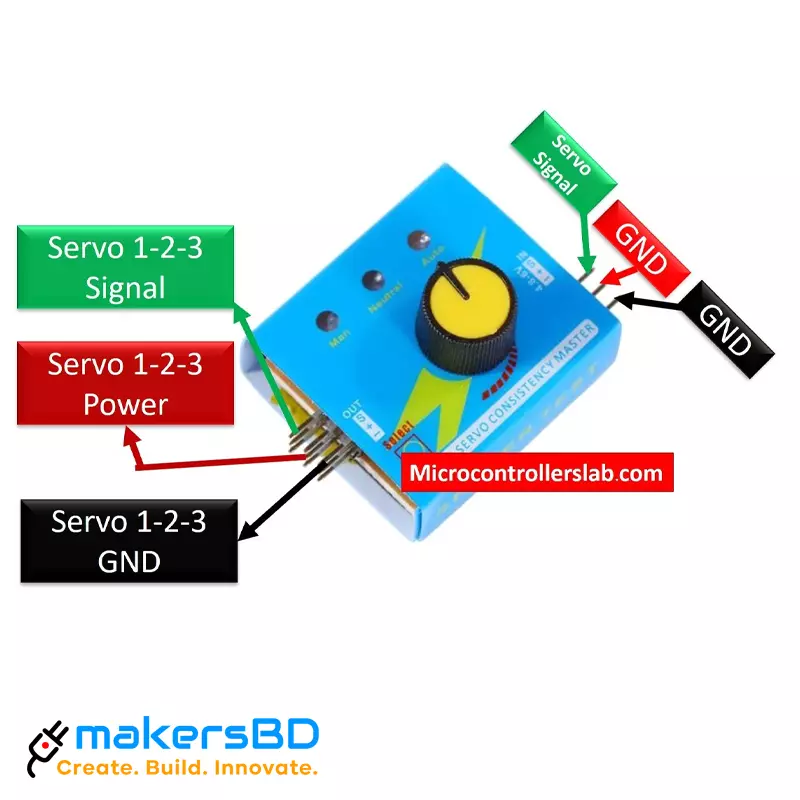

The 3CH Servo Tester Gear Test CCPM Consistency Master Checker is a compact and practical tool for testing, adjusting and comparing RC servo motors and Electronic Speed Controllers (ESCs). It can connect up to three servos or ESCs simultaneously, making it useful for checking their response and consistency before installing them in an RC or robotics project.
This servo tester offers three convenient operating modes. Manual Mode lets you rotate the control knob to move the servo through different positions and check its response. Neutral Mode brings the servo to its center/neutral position, while Automatic Mode continuously sweeps the servo back and forth through its available range, similar to a window wiper.
The module can also work as an ESC signal generator, allowing you to test an ESC and motor system without using a transmitter and receiver. By connecting multiple servos or ESCs, you can compare their reaction and consistency, making it especially useful for RC enthusiasts, hobbyists, electronics technicians and robotics projects.
Its compact 8g design and simple knob-based control make it easy to use on both the workbench and in the field.
