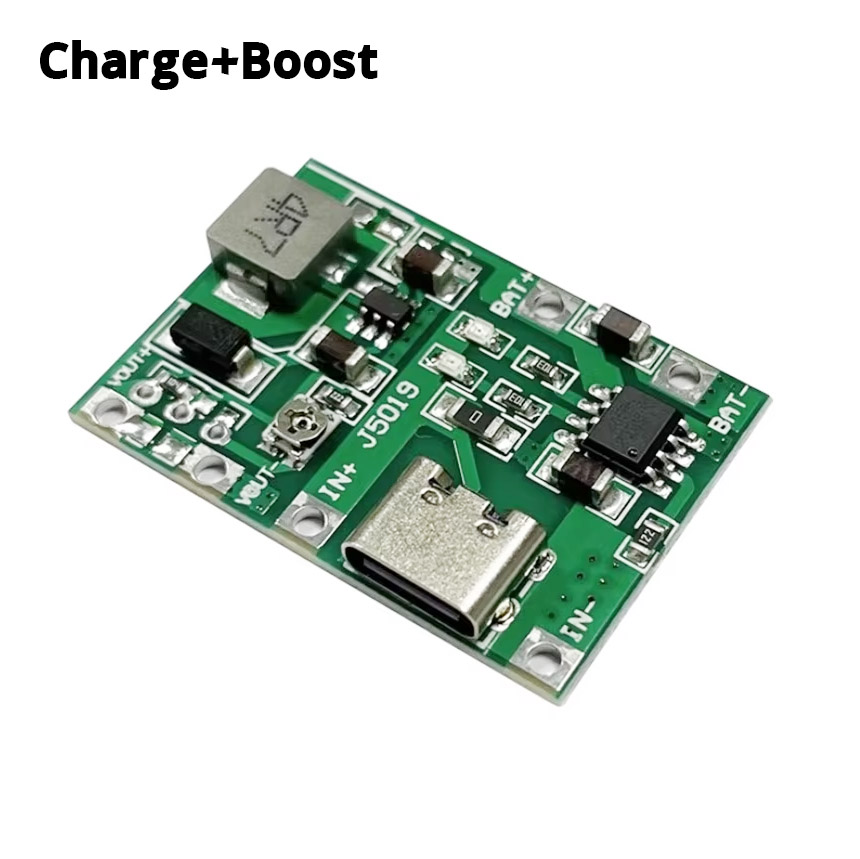

Lithium Battery Charger with Boost Function Adjustable Module 2A Type C Interface

17%

OFF

~~৳116~~ ৳96

0.00/5 See Reviews

SKU : MK0189

Brand : MakersBD

- +

Stock : Available

Delivery Information

Home delivery available all over Bangladesh

Standard Delivery

• Inside Dhaka 24 Hours guaranteed delivery.
• Outside Dhaka 48 hours guaranteed delivery after order confirmation

Regular Delivery Charge

• Inside Dhaka 60Tk
• Outsite Dhaka 120Tk

Cash on Delivery Available

Advance Payment Means Faster Delivery

Scan with mobile

Download app to enjoy exclusive offers and discounts!

Sold by

MakersBD Gadget & Electronics

Specification

USB Type C interface model
Interface: USB interface
Input voltage: DC4.5-8V
Output voltage: DC4.3V~27V adjustable
Output current: 2A MAX
Charging voltage: 4.2V
Charging current: 1A
TYPE-C interface model:
Interface: TYPE-C interface
Debugging is completed before use, and the default output is about 9V
Input voltage: DC 4.5-8V
Output voltage: DC4.3-27V adjustable (any voltage above 4.3V and below 27V can be output, self adjustable, counterclockwise adjustable boost)
Charging voltage: 4.2V
Charging current: maximum 1A
Discharge current: maximum 2A (output current to be calculated by oneself, output reference maximum current 5V 1.4A, 9V 0.8A, 12V 0.6A
Quiescent current: approximately 0.5MA
Overcurrent protection: Yes
Size: 3.3X2.3X0.9 CM

Parameters:

100% brand new high-quality product with 2 interfaces to choose from.

Made of high-quality materials, DC4.3-27V adjustable voltage, durable and practical.

Small in size, only 3.3X2.3X0.9 CM, simple in application and easy to install.

Efficient and stable performance, long working life.

It has a wide range of applications and can be used for modifying a multimeter to charge lithium batteries.

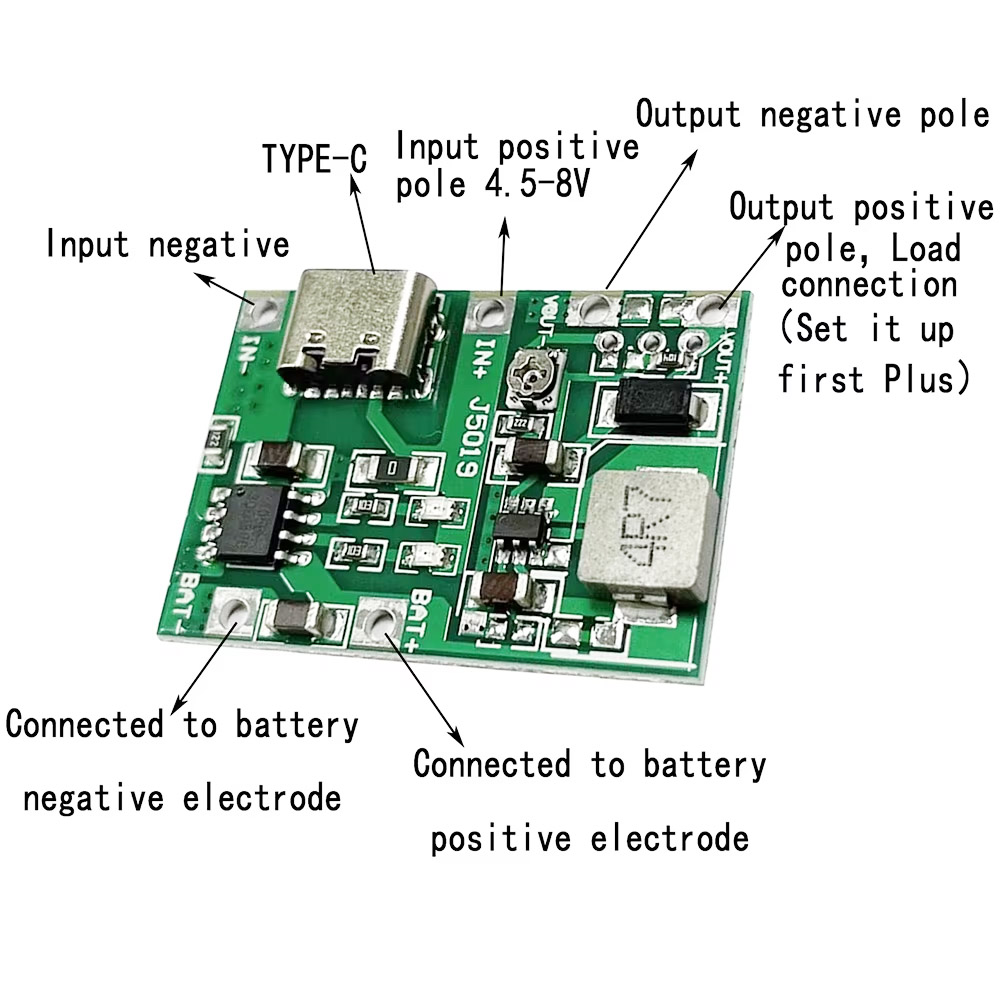

Wiring example:

For example, the VIN+terminal is connected to a 5V solar panel, and the BAT+terminal can output 4.2V to charge a 3.7V 18650 battery,
The OUT+terminal can output an adjustable voltage, which can be adjusted by oneself and used for modifying a multimeter to charge lithium batteries

Package include:
