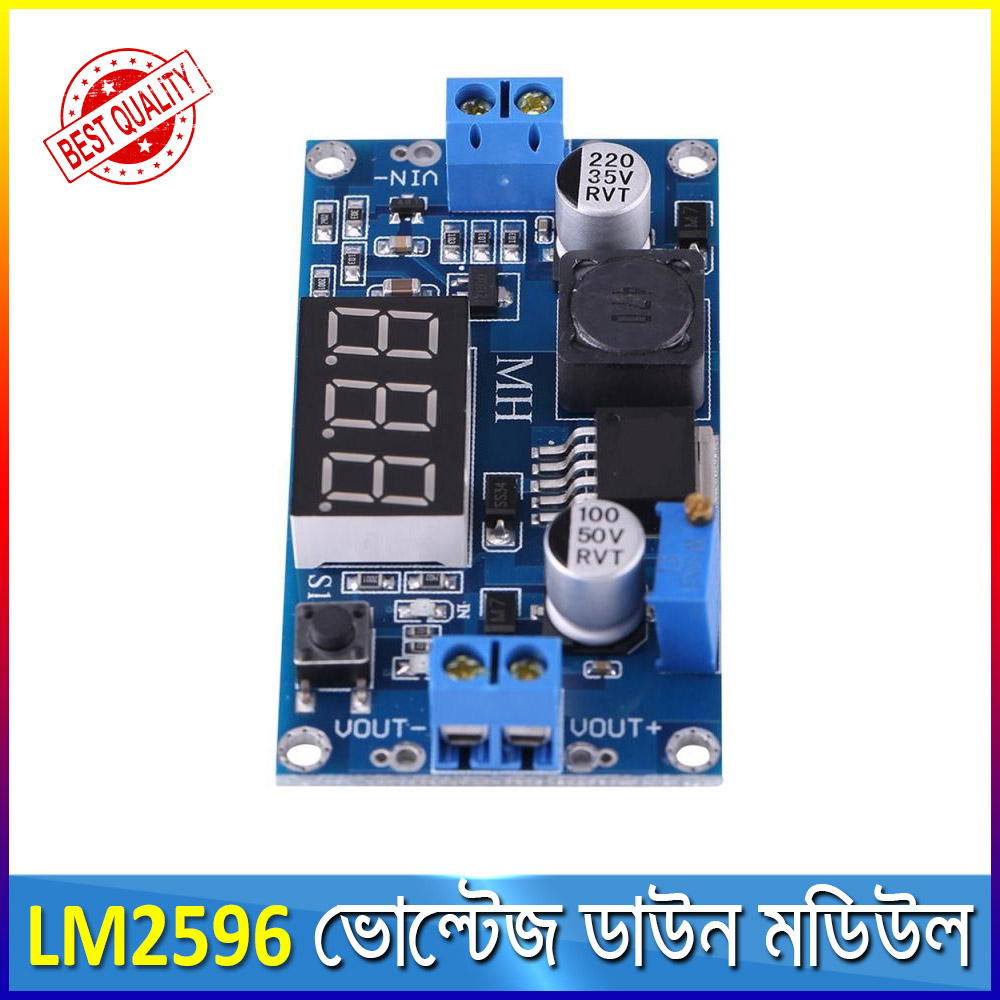

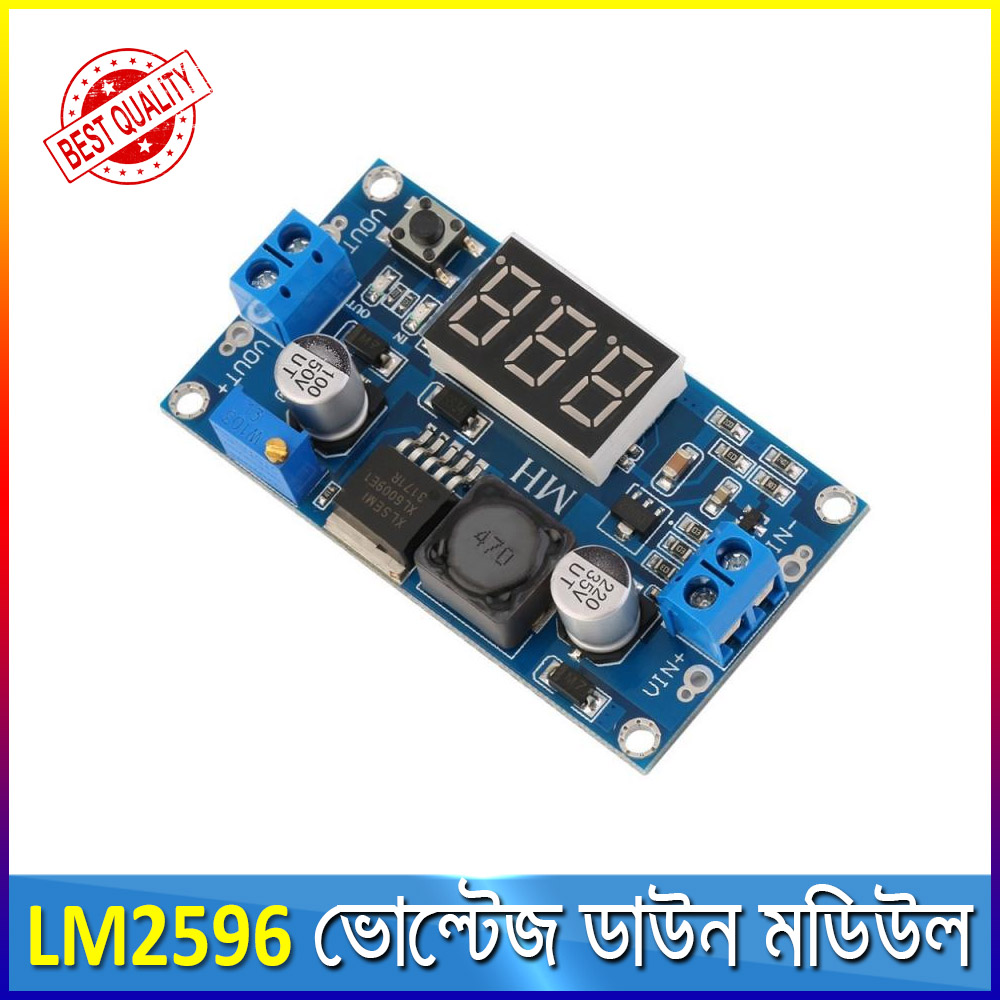

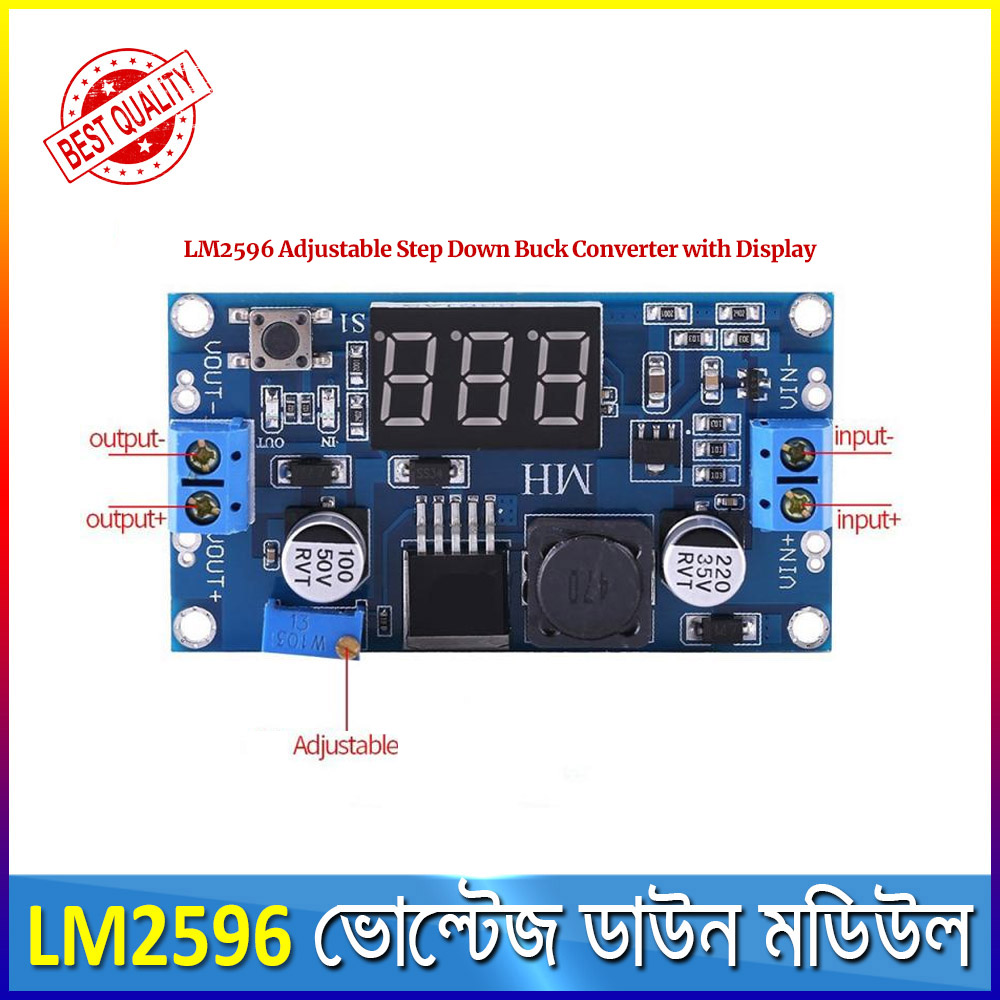

LM2596 With Display Adjustable Step-Down Buck Converter 4~40V Module

20%

OFF

~~৳400~~ ৳320

0.00/5 See Reviews

SKU : MK0167

Brand : N/A

- +

Stock : Available

Contact WhatsApp

Delivery Information

Home delivery available all over Bangladesh

Standard Delivery

• Inside Dhaka 24 Hours guaranteed delivery.
• Outside Dhaka 48 hours guaranteed delivery after order confirmation

Regular Delivery Charge

• Inside Dhaka 60Tk
• Outsite Dhaka 120Tk

Cash on Delivery Available

Advance Payment Means Faster Delivery

Scan with mobile

Download app to enjoy exclusive offers and discounts!

Sold by

MakersBD Gadget & Electronics

Chat Now

Specification
Description
Reviews (0)

Specification

Input voltage range:4-40VDC
Output voltage range:1.25-37VDC adjustable
Output current:2A
Voltmeter range: 0 to 40V, error ±0.1V
Input reverse polarity protection
Built in output short protection function
Built in thermal shutdown function
Size: L x W x H =6.1*3.4*12 cm
Weight: 22g
LED Digital Voltmeter Tube, The Accuracy is Adjustable Function,Can be Aimed at your Multimeter Adjustable Accurate.
Press the Right key to let the display show the input oroutput voltage. when the right “OUT” led light, it shows output, the left “IN”led show input.

Description

How to adjust the accuracy? Output voltage calibration steps:

Step 1: Adjust the right button so that "OUT" LEDlighted, the voltmeter shows the value of output voltage; Press the rightbutton for more than 2 seconds, release, voltmeter and "OUT" LEDflashes in synchronization so that youenter the output voltage calibrationmode.

Step 2: Press the right button (normal speed), the voltagevalue is adding up a unit; Press the left button, minus a unit; Due to a unitis less than 0.1V, the minimum voltage display to 0.1V, so you need tocontinuously press 1-5 times to see the voltmeter change 0.1V, how many timesvoltmeter change 0.1V by pressing the key, depending on the current displayvoltage, the higher the voltage, the fewer the number of press.

Step 3: Press the right button for more than 2 seconds,release, to exit the output voltage calibration mode. All parameters set toautomatically power down to save.

Input voltage calibration steps:

Step 1: Adjust the right button so that "IN"LED lighted, the voltmeter shows the value of input voltage; press the rightbutton for more than 2 seconds, release, voltmeter and "IN" LEDflashes in synchronization so that you enter the input voltage calibrationmode.

Steps 2 and 3, consistent with the output voltagecalibration method.
