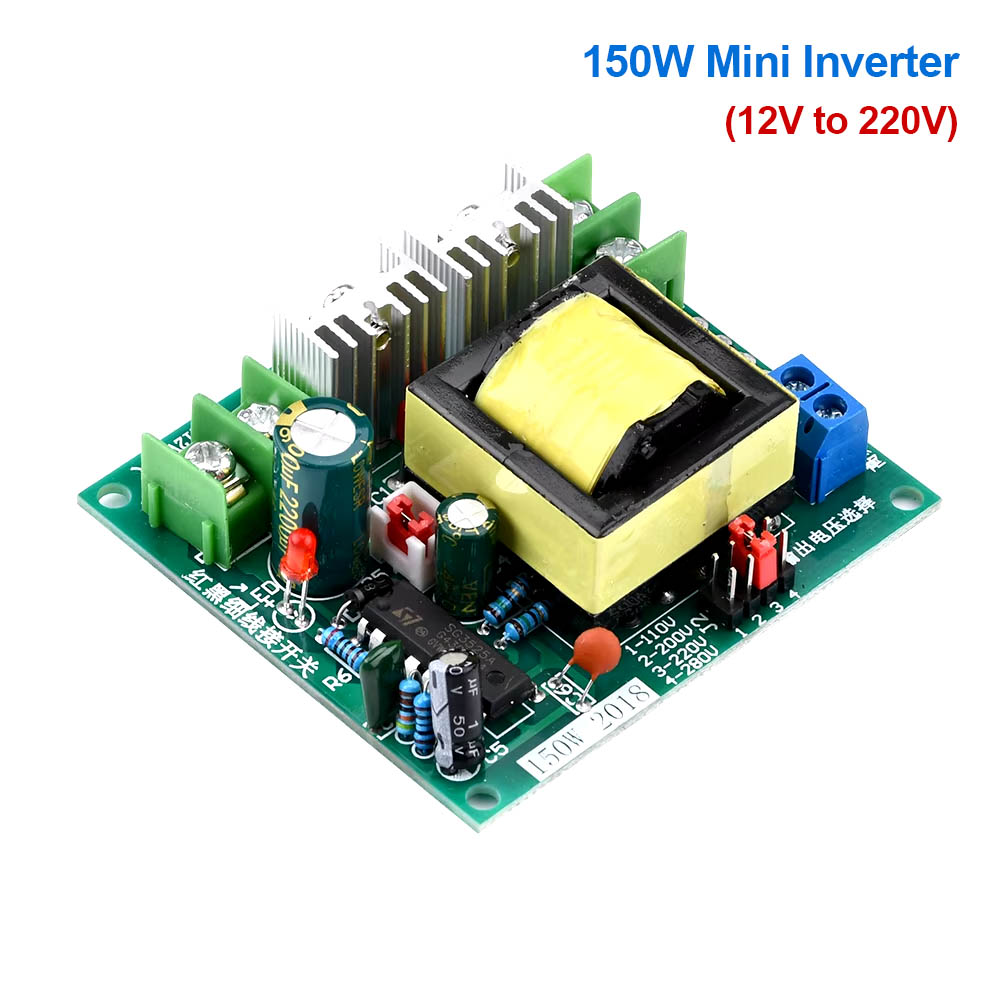

150W Inverter 12V-220V Step Up Power Supply Module
৳ 620
৳ 490
SKU : MK0078
Home delivery available all over Bangladesh
Standard Delivery
• Inside Dhaka 24 Hours guaranteed delivery.• Outside Dhaka 48 hours guaranteed delivery after order confirmation
Regular Delivery Charge
• Inside Dhaka 60Tk• Outsite Dhaka 120Tk
Cash on Delivery Available
Advance Payment Means Faster Delivery
Scan with mobile
Download app to enjoy exclusive offers and discounts!
Sold by
MakersBD Gadget & Electronics
Specification
১৫০ ওয়াটের অধিক আউটপুট নিলে কুলিং ফ্যান ব্যবহার করুন, ইনভার্টারটি মোটর কিংবা ফ্যানের জন্য নয়। যেকোন SMPS Power System যেমন Laptop, Mobile, TV, Router, ONU ইত্যাদি ব্যবহার করা যাবে।

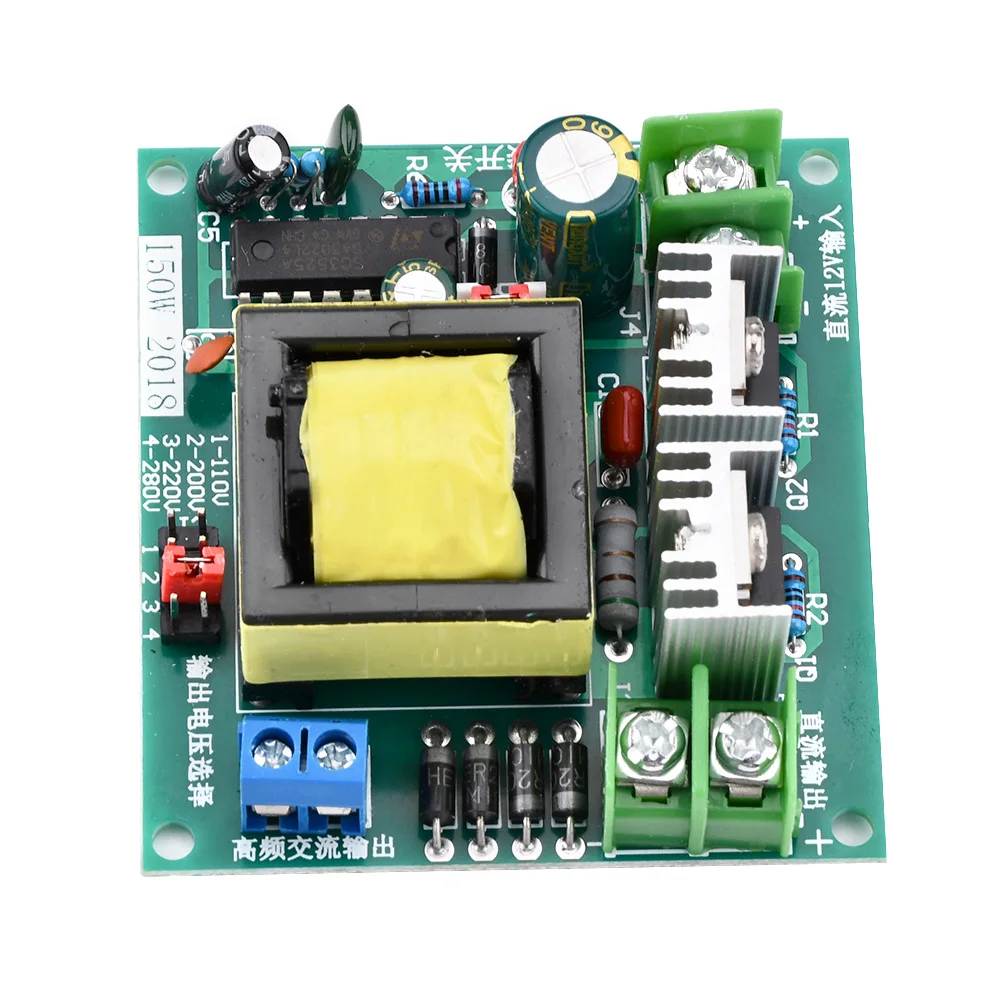

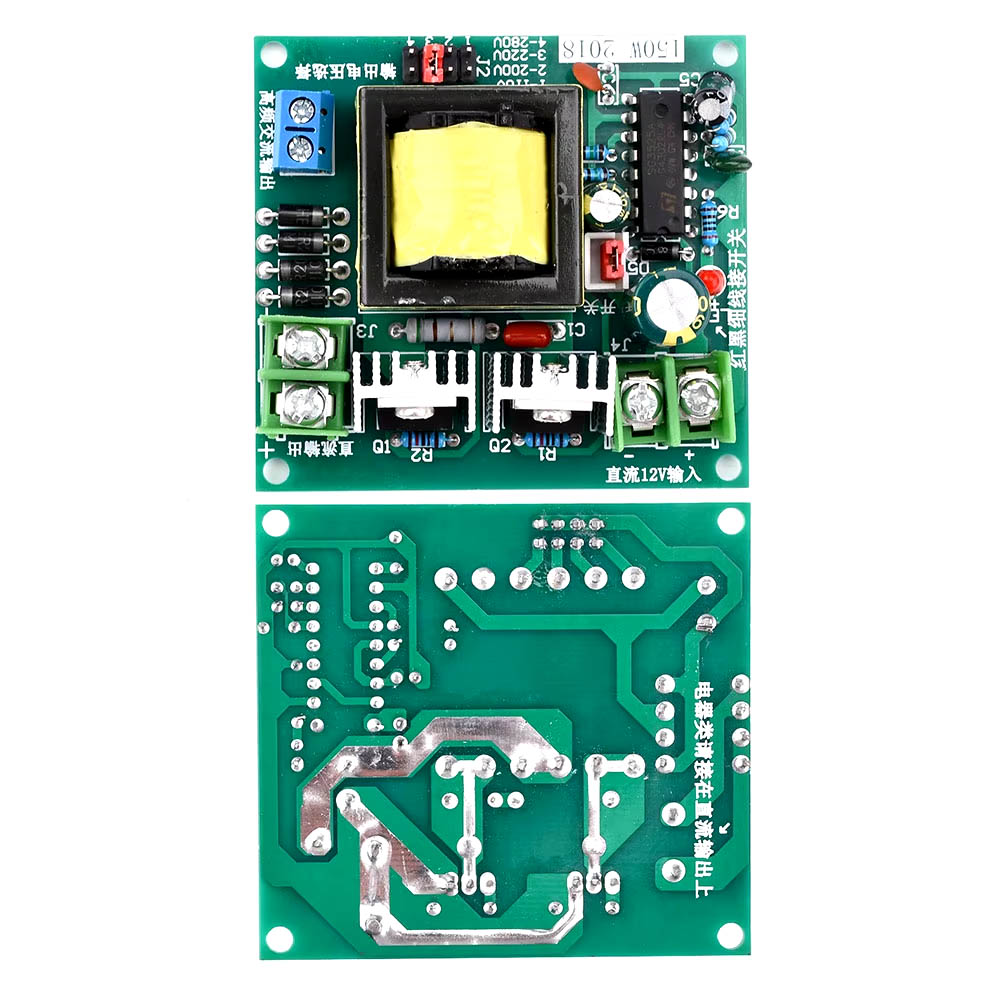

- PCB size: 66*61mm
- Input Voltage: DC12V

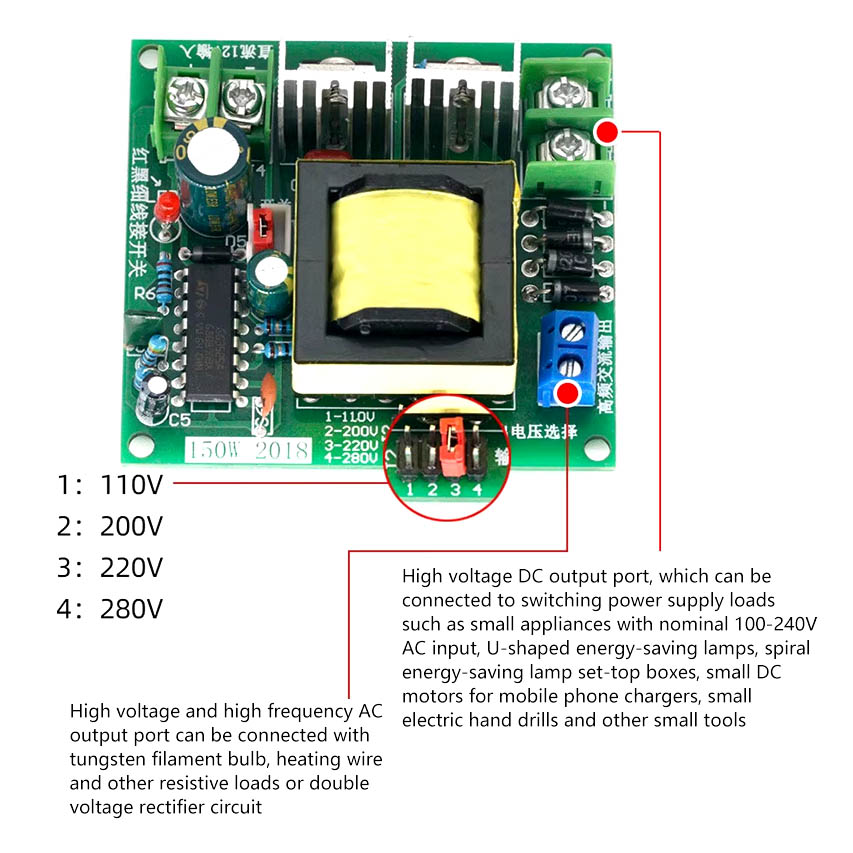

- Output Voltage: 110V/200V/220V/280V (Marked on the PCB. Can be set with jumper onboard)
- Output Wave Form: high frequency square wave or DC(un-filtered)
- Output Power: rated 150W, Max 200W (When higher than 100W, please use cooling fan)
- Current with 12V interface (No-load): 250mA
- Working Frequency: 37kHz
- Onboard Chip: ST SG3525A or KA3525, depending on different production batches.
- FET: RU6099R or DX3205R, depending on different production batches.
Description
Product Features:
- Solder-free,7.62 terminals for input terminals
- Blue 301 terminal block for high voltage DC output, 7.62 terminal block for DC output
- Voltage can be selected at will, through the jumper cap, no need to solder
- Large output power, if there is a fan cooling, this board can output 200W power using double-sided circuit board
- Output can be connected to multiplier rectifier, or pure resistive load
সতর্কতা:
- We recommend connect to "DC Output", because normal electric units are using normal rectifier. If connected to the "High Frequency AC Output", rectifier will heat up fast and damaged, diode will be destroyed.
- This board has high frequency square wave AC output and DC output, so it can not drive inductive electric devices (such as motor, fan, resistor capacitor volt step-down units, small LED lights, etc)
- When connected to small loads (phone chargers, DVD, etc), we recommend conect to lower voltage output, like 200V.
- When working at high load (higher than 100W) or for long time, please use larger heatsink and fan for cooling.
- Please do not mistake polarity. Need sufficiently big current for power supply and power cable.
- No overload, No shorted at the output.
- When output is high frequency and there is no load, the testing result with a multi-meter will be higher than actual..
- The range of non-usable appliances: iron core transformers, such as the use of iron core transformers for audio, temperature regulating soldering irons, dimming lamps, AC motor loads such as electric fans. Cheap resistive buck LED lamps and lanterns (e.g. LED nightlights, straw hat LED lamps and lanterns, LED lamps in plastic housings).
