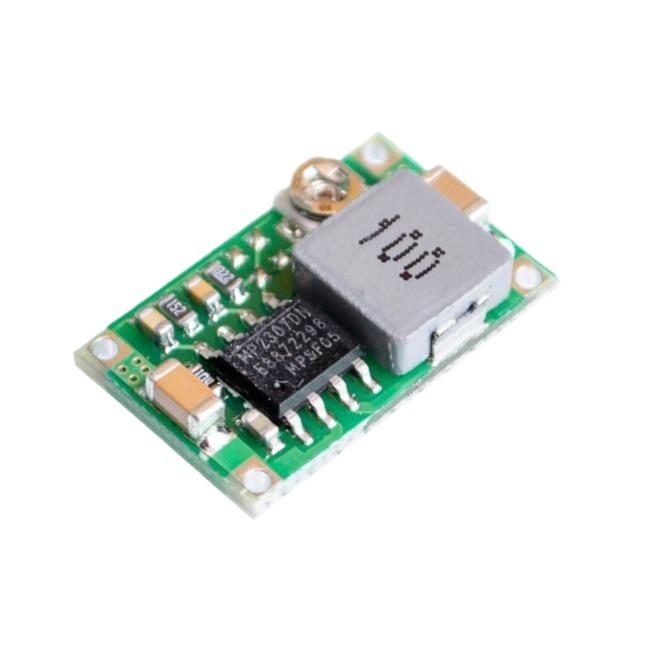

DSN-MINI-360 DC-DC Buck Converter Step-Down Power Supply Module
৳ 120
৳ 85
SKU : MK0506
- Input Voltage: 4.75V to 23V DC input range
- Output Voltage: 1V to 17V adjustable step-down output
- High Efficiency: Up to 96 percent conversion rate
- Compact Design: Ultra small footprint for easy projects
- Load Capacity: Continuous 1.5A current output support
Home delivery available all over Bangladesh
Standard Delivery
• Inside Dhaka 24 Hours guaranteed delivery.• Outside Dhaka 48 hours guaranteed delivery after order confirmation
Regular Delivery Charge
• Inside Dhaka 60Tk• Outsite Dhaka 120Tk
Cash on Delivery Available
Advance Payment Means Faster Delivery
Download app to enjoy exclusive offers and discounts!
Sold by
MakersBD Gadget & Electronics
Specification
| Specification | Details |
|---|---|
| Model | DSN-MINI-360 |
| Chipset | MP1482DN |
| Input Voltage | 4.75V - 23V DC |
| Output Voltage | 1.0V - 17V DC (Adjustable) |
| Output Current | Rated 1.5A (Max 3A with heatsink) |
| Conversion Efficiency | 96% (Maximum) |
| Switching Frequency | 340 kHz |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 17mm x 11mm x 3.8mm |
Description
Product Overview
The DSN-MINI-360 DC-DC Buck Converter is an ultra-compact, high-efficiency step-down power supply module designed for various electronic projects and DIY builds. Utilizing synchronous rectification technology, it delivers superior performance with minimal heat dissipation, making it an essential component for hobbyists, engineers, and students across Bangladesh.
Built with precision surface-mount components and a reliable MP1482DN chip, this module ensures stable voltage regulation for sensitive microcontrollers, sensors, and portable gadgets. Its miniature size allows seamless integration into space-constrained enclosures without compromising power output quality.
Key Features & Advantages
- Synchronous Rectification: Ensures exceptionally high energy conversion efficiency up to 96 percent.
- Adjustable Output: Features a fine-tuning potentiometer to accurately set the desired output voltage.
- Wide Input Range: Accepts 4.75V to 23V DC sources, accommodating various power supplies like Li-ion batteries or USB adapters.
- Thermal Stability: Designed to operate reliably under standard load conditions with low operational temperature.
- Compact Form Factor: Extremely lightweight and small, perfect for portable and wearable electronic designs.
How to Use / Working Guide
Connect your DC input source to the IN+ and IN- terminals, ensuring correct polarity alignment. Use a precision multimeter to measure the output across the OUT+ and OUT- terminals while carefully adjusting the onboard potentiometer screw until the desired voltage is reached. Avoid exceeding the maximum rated input voltage and current limits to prevent permanent hardware damage.
Applications & Ideal Use Cases
- DIY power supply and battery charger projects
- Microcontroller and Arduino project voltage regulation
- Portable electronic device power modification
- LED driver and lighting control circuits
Frequently Asked Questions (FAQ)
Q: What is the maximum output current for this module?
A: The module supports a continuous output current of 1.5A and can handle up to 3A for very short durations with proper cooling.
Q: Can I step up the voltage with this module?
A: No, this is a buck converter meaning it strictly steps down or lowers the input voltage to a lower output level.
Package Includes
- 1 x DSN-MINI-360 DC-DC Buck Converter Step-Down Module
